Filter Descriptions



The photo links on this page will open larger images new browser windows. Close the new windows to return to this page.



222_thumb

White-banded,
three-piece cassette
(25 mm)

Cassette:
25 mm static free, black cowl

Filter:
0.8 micron mixed cellulose ester filter

Use:
Collection of asbestos and other fibers









219_thumb

White-banded,
three-piece cassette
(37 mm)

Cassette:
37 mm, white-banded

Filter:
0.8 micron mixed cellulose ester filter (AA)

Use:
Closed-faced for collection of metal fumes and metal particulates; open faced for the collection of molds

Note:
This filter is not pre-weighed and therefore cannot be used for gravimetric analysis.





226_thumb

White-banded,
two-piece glass fiber

Cassette:
37 mm, white-banded

Filter:
Type A glass fiber filter

Use:
Sampling some pesticides, coal tar pitch volatiles, and paraffin

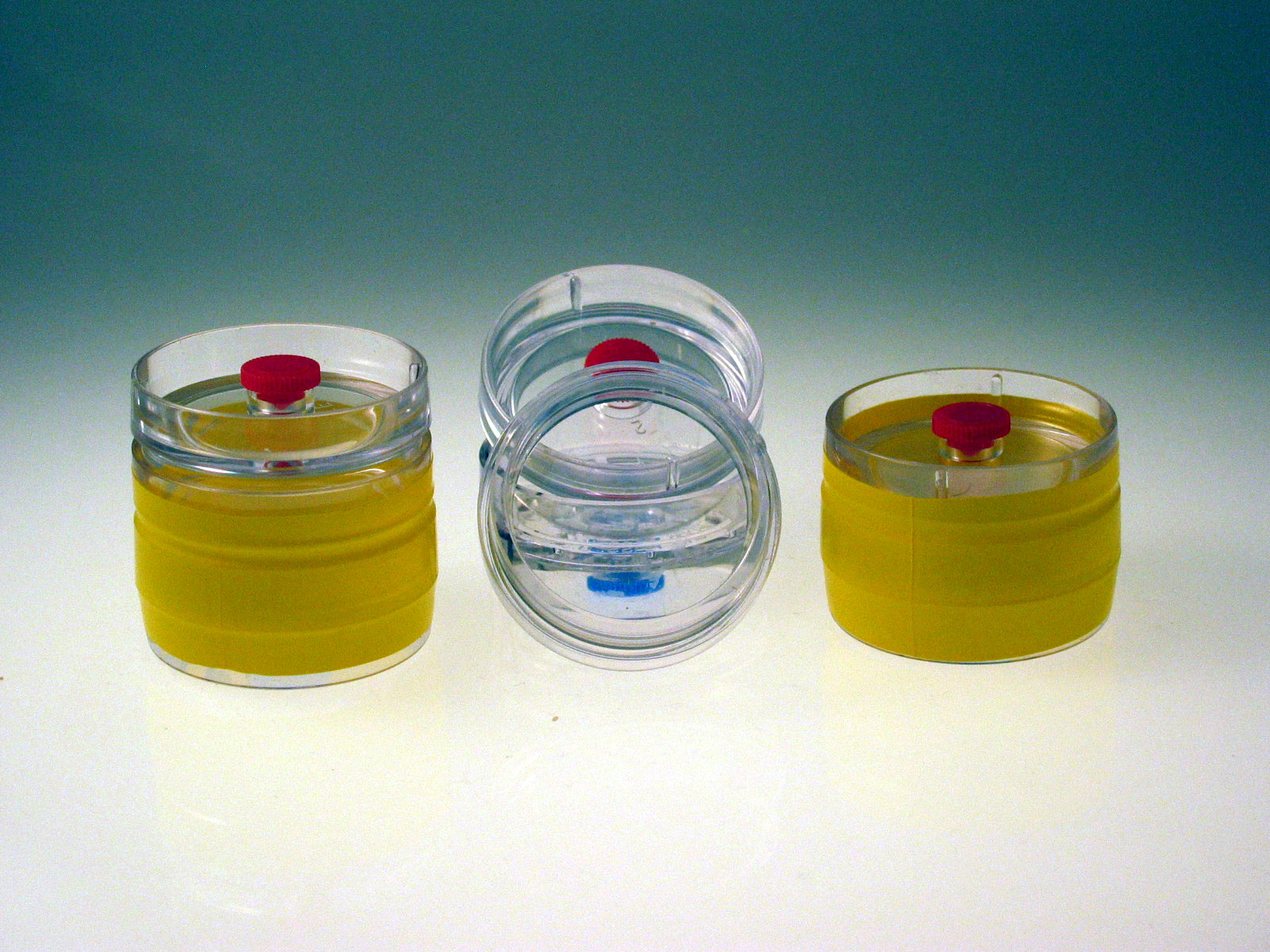

213_thumb

Low-ash
polyvinyl chloride
(5 micron)

Cassette:
Two- and three-piece 37 mm, yellow-banded

Filter:
5-micron polyvinyl chloride filter

Use:
When total or respirable mass is required; also used for silica, particulates, and metals collection

Note:
When respirable mass is requested we will supply a two-piece cassette if using the MSA nylon cyclone, or a three-piece cassette if using a SKC aluminum cyclone.

Be sure to tell us which kind you are using when ordering these supplies.

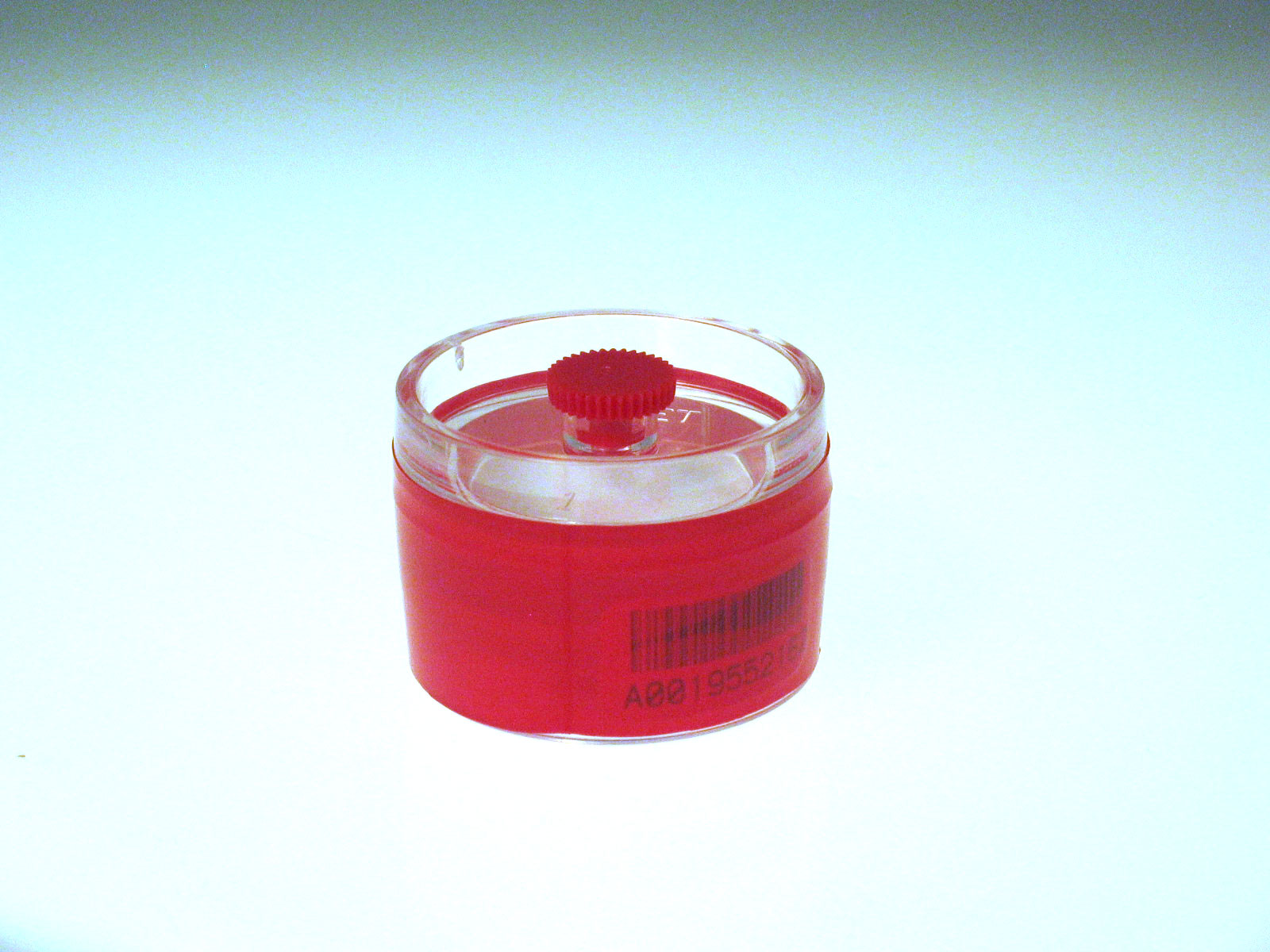

229_thumb

Low-ash
polyvinyl chloride
(0.8 micron)

Cassette:
37 mm, red-banded

Filter:
0.8 micron polyvinyl chloride filter

Use:
Welding fumes and other situations where both a total weight and a metals fumes plus particulates analysis are required.





232_thumb

Low-ash
polyvinyl chloride
(0.8 or 5 micron)

Cassette:
Smaller 25 mm cassette

Filter:
0.8 or 5 micron polyvinyl chloride filter (available with and without pre-weight)

Use:
Sampling inside a welding helmet







235_thumb_disc

MSA
(pre-weighed)

Cassette:
37 mm, saucer-shaped

Filter:
5 micron PVC filter enclosed in an electrostatic shield

Use:
Sampling wood dust and other electrostatic materials; also used for collecting silica

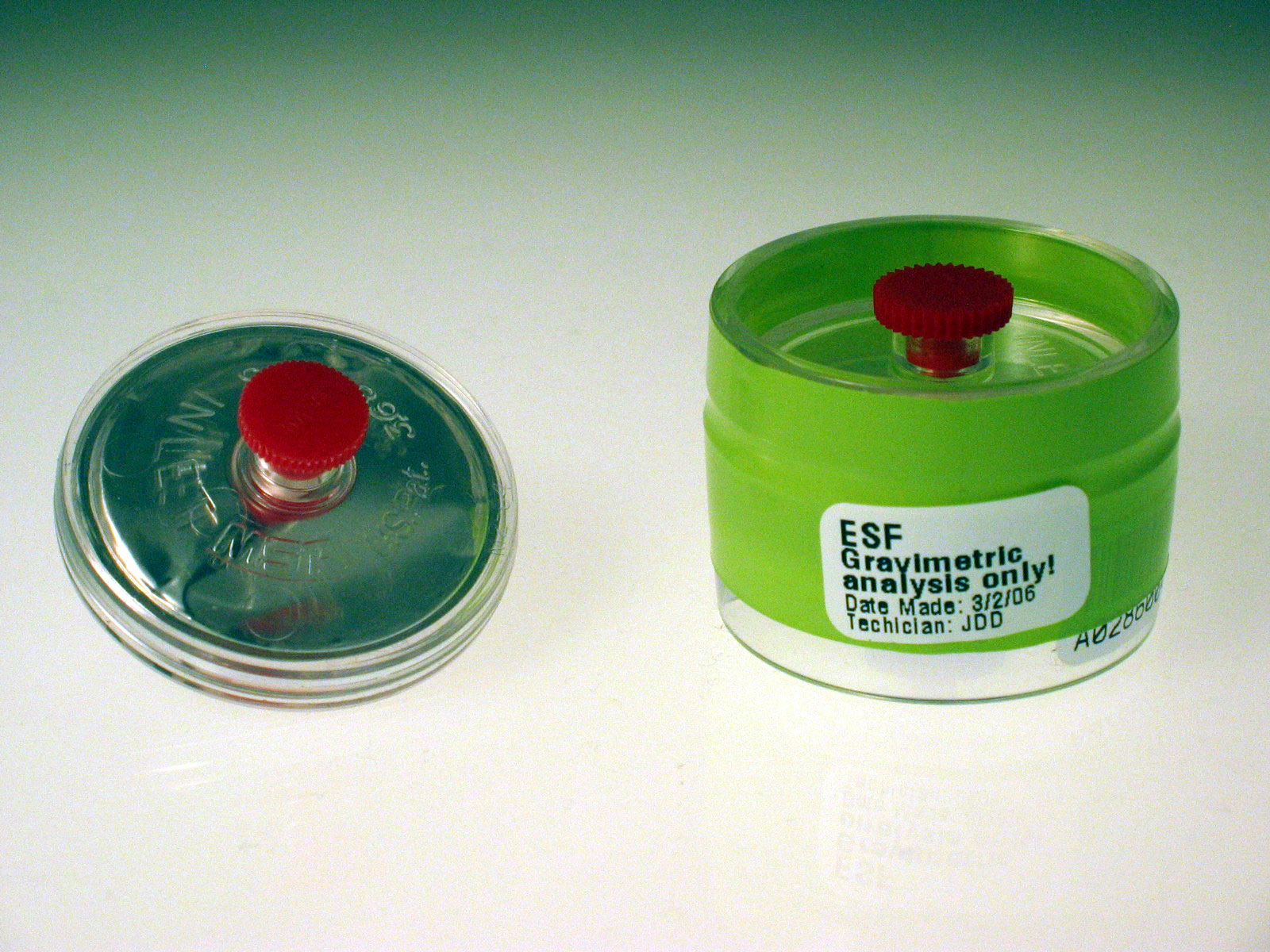

235_thumb

Accucap,
green-banded

Cassette:
37 mm, green-banded

Filter:
5 micron PVC filter enclosed in an electrostatic shield

Use:
Sampling wood dust and other electrostatic materials





242_thumb

Isocyanate
three-piece cassette

Cassette:
37 mm, orange-banded

Filter:
Treated glass fiber

Use:
Collection of isocyanates; sample open-faced

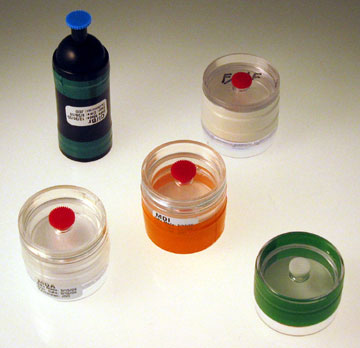

Other Filters



242

The lab also supplies a variety of treated filters for special applications.

Treated filters generally have limited shelf life and should be ordered as close as possible to the sampling date. The treated filters are usually made only after you request them, so an additional day or two may need to be added for shipment.

Included in this category are:

  1. Quartz filters for elemental/organic carbon (diesel exhaust)
  2. H2SO4 treated glass fiber filter for organic acids such as methylene dianiline
  3. Hex chromium filters (contact the laboratory at 800-446-0403 to discuss sampling strategy)

The laboratory may not be able to provide the requested analysis when an inappropriate filter type has been used. Contact the laboratory at 800-446-0403 whenever you have any questions as to which filter to use.
