Newborn Blood Screening Panel of Diseases

Argininosuccinic Acidemia (ASA)

NOTE: Newborn screening cannot differentiate ASA from citrullinemia.

Autosomal recessive urea cycle disorder caused primarily by a deficiency in argininosuccinic acid (ASA) lyase enzyme activity causing the build-up of argininosuccinic acid, citrulline, and ammonia in the blood. Clinical symptoms include lack of appetite, vomiting, listlessness, seizures, and coma.

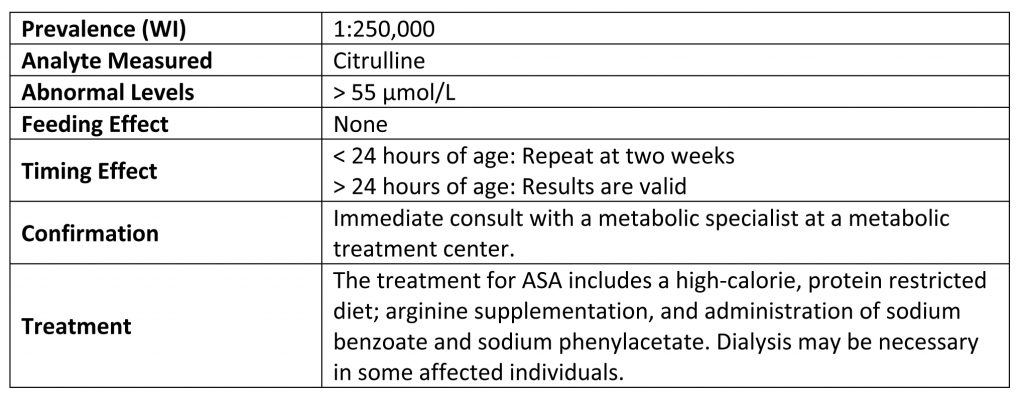

ASA

Back to top

Biotinidase Deficiency

Autosomal recessive disorder of biotin recycling that leads to multiple carboxylase deficiencies. Individuals with biotinidase deficiency cannot recycle endogenous biotin and cannot release dietary protein-bound biotin.

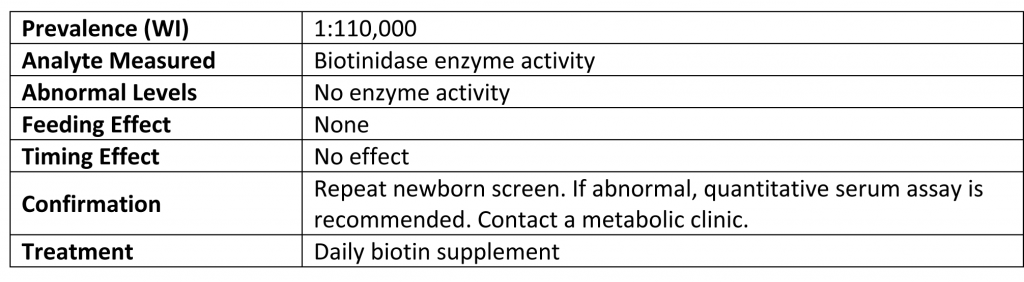

Biotin
Back to top

Citrullinemia (Type I and II)

NOTE: Newborn screening cannot differentiate citrullinemia from ASA.

Autosomal recessive urea cycle disorder caused primarily by a deficiency in the argininosuccinic acid synthetase enzyme activity causing the build-up of the amino acid citrulline and ammonia in the blood. Clinical symptoms include lack of appetite, vomiting, listlessness, seizures, and coma.

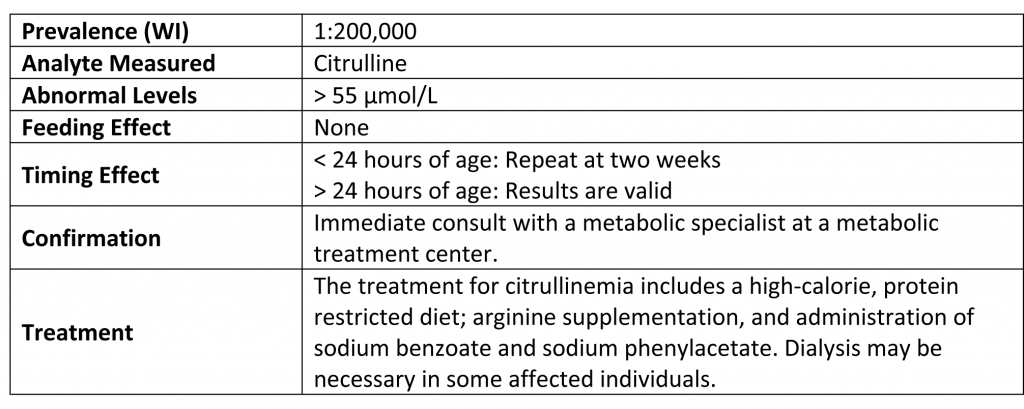

Citrull
Back to top

Congenital Adrenal Hyperplasia

A family of diseases whose common feature is an enzymatic defect in the steroidogenic pathway leading to the biosynthesis of cortisol. The 21-hydroxylase deficiency accounts for 90-95% of CAH cases, resulting in ambiguous genitalia in females and salt-losing crisis in either males or females. Early detection and treatment is essential to prevent death in infants with salt-losing CAH. See Guidelines for Proper Follow-up of 17-OHP Results.

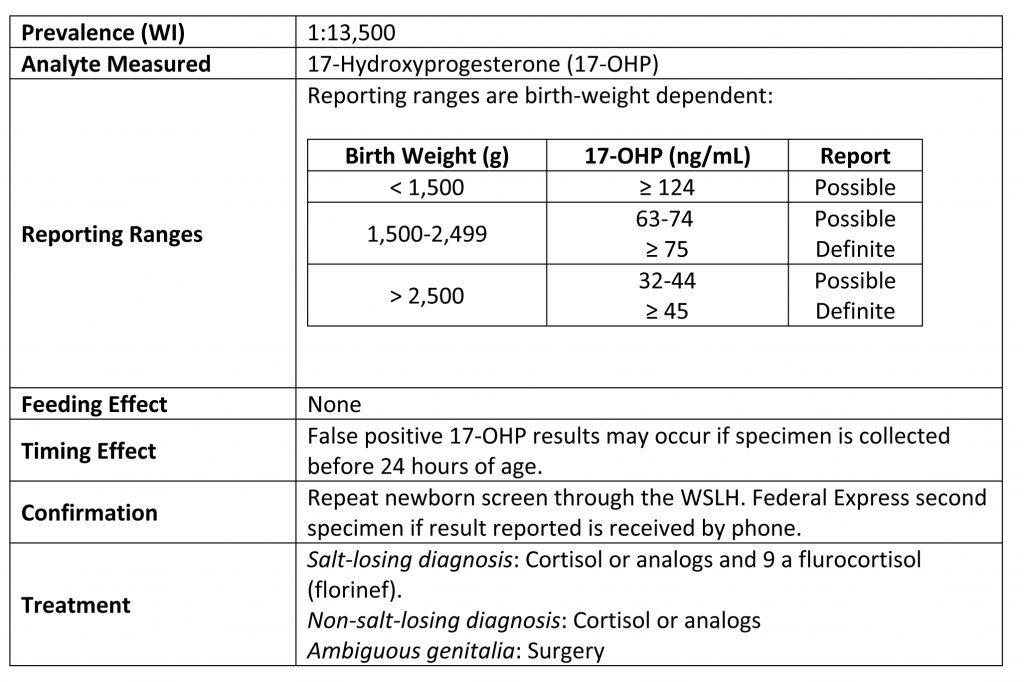

CAH

COMMENT: Repeat of non-normal 17-OHP newborn screening tests by a “reference” laboratory is not recommended due to the potential confusion in reporting units.

Back to top

Congenital Hypothyroidism

Disorders of the thyroid-hypothalamus-pituitary axis resulting in inadequate production of thyroid hormones. Hypothyroidism is a family of disorders, including endemic cretinism, thyroid agenesis or ectopia, genetic disorders of thyroid hormonogenesis, or hypopituitarism.

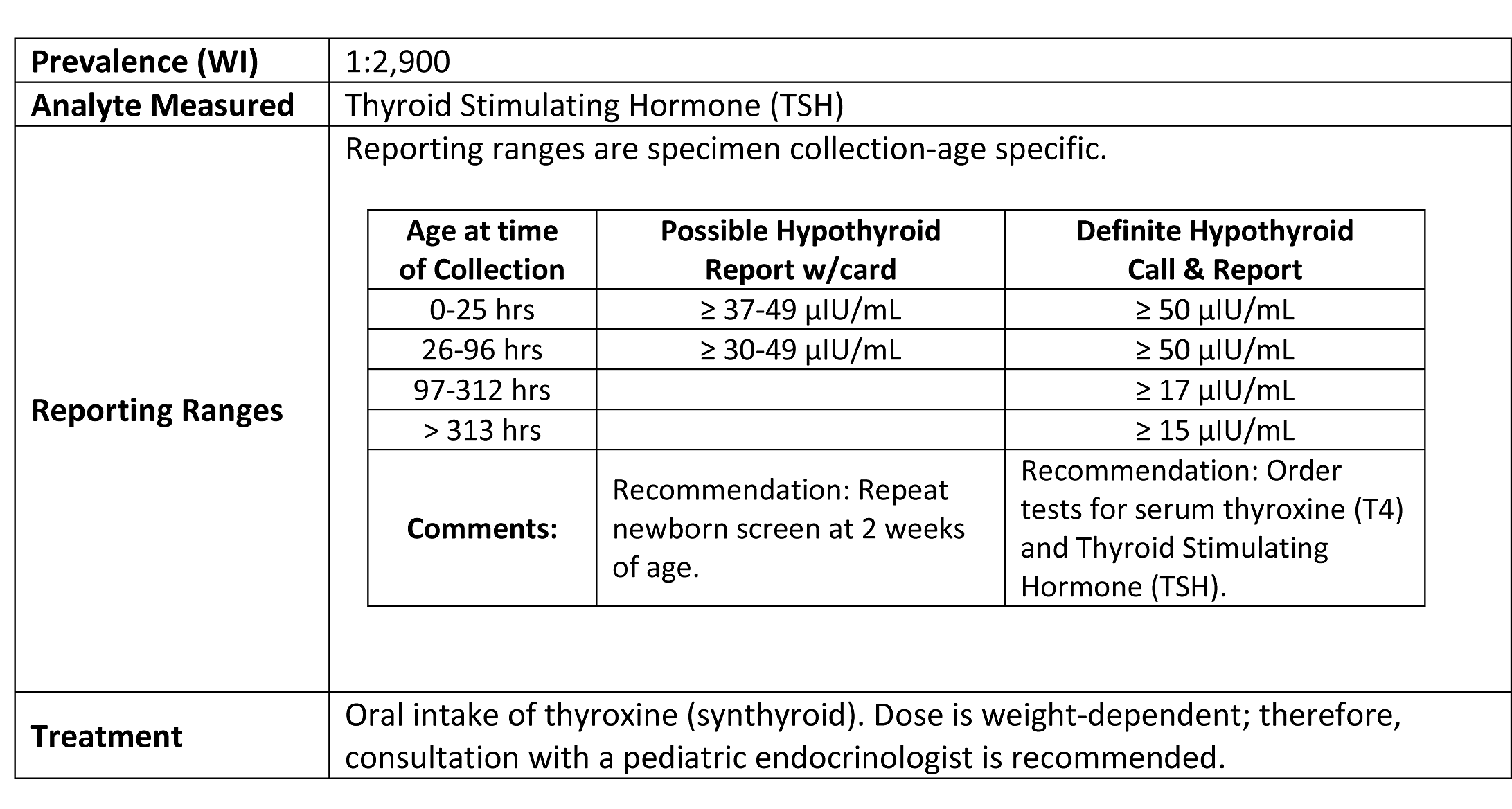

HypothyroidismWebPageUpdate-051515





















COMMENT: TSH increases dramatically shortly after birth and gradually returns to adult normal levels in about 72 hours. False positive results occur due to the specimen being collected at the height of the TSH spike, usually within the first hours of life. Although newborn screening can detect “primary” hypothyroidism with a high degree of accuracy, other forms of hypothyroidism may develop in the weeks after birth. The physician must therefore remain alert to clinical symptoms in older infants despite normal newborn screening results. Perform serum total T4, free T4, and TSH if any doubt exists.

Back to top

Cystic Fibrosis

Autosomal recessive disorder characterized by pulmonary obstruction and/or exocrine pancreatic dysfunction. The most common mutation causing cystic fibrosis is a three-basepair deletion (F508del) in the cystic fibrosis transmembrane regulator (CFTR) gene.



COMMENT: Screening for cystic fibrosis using the current two-tiered IRT/DNA approach cannot always distinguish babies who are CF carriers from babies who are affected when only one CF-causing variant is identified. Sweat Chloride testing by the CFF-approved quantitative pilocarpine ionotophoresis method is recommended for all reported positive screening results, i.e., babies with either one or two mutations detected. For babies with non-detected CF-causing variants but with an IRT >170ng/mL, the primary care provider should be alert for persistent diarrhea, poor weight gain, chronic cough or respiratory problems. If these signs appear, or if there is a family history of CF, contact should be made with a CF specialist.

FDA-cleared 139 Variant Panel

Click here to view or print a PDF of this panel.

Expanded Variant Panel

Click here to view or print a PDF of this panel. (Updated 07/12/2023)

Back to top

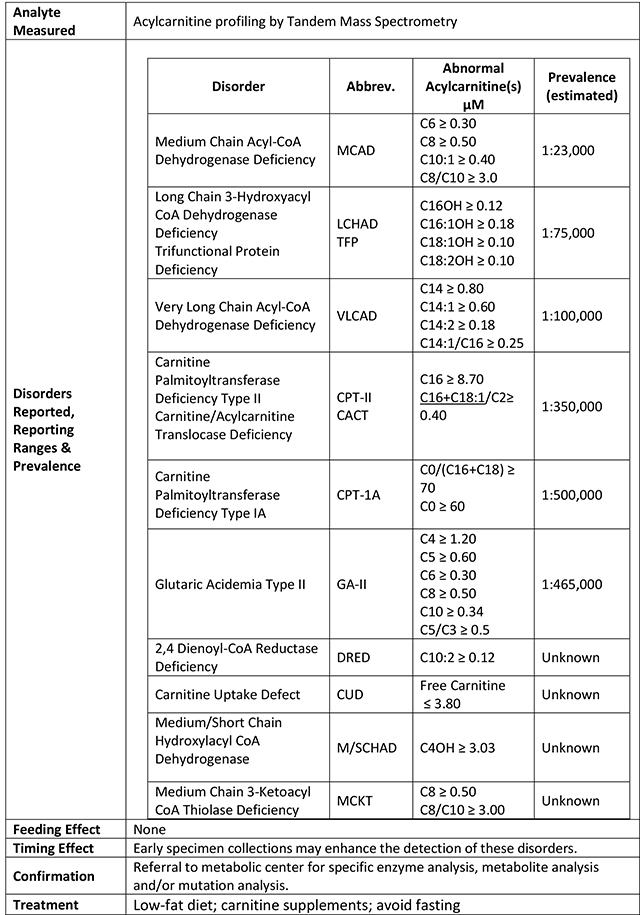

Fatty Acid Oxidation Disorders

Fatty Acid Oxidation Disorders (FOD) are a class of inborn errors of metabolism in which there is an enzyme defect in the fatty acid metabolic pathway (use of dietary and stored fat). Clinical symptoms of FOD disorders include hypotonia, lethargy and vomiting; the hypoglycemia can lead to coma, encephalopathy, hepatic failure or death.

Back to top

Galactosemia

Autosomal recessive disorder of galactose metabolism. The genetic disturbance is expressed as a cellular deficiency of either galactose-1-phosphate uridyl transferase (classic form), galactokinase (variant), or uridine diphosphate galactose 4 epimerase (variant) – the enzymes catalyzing the reaction by which galactose is converted to glucose. The main dietary source of galactose is lactose, the principle carbohydrate in milk.

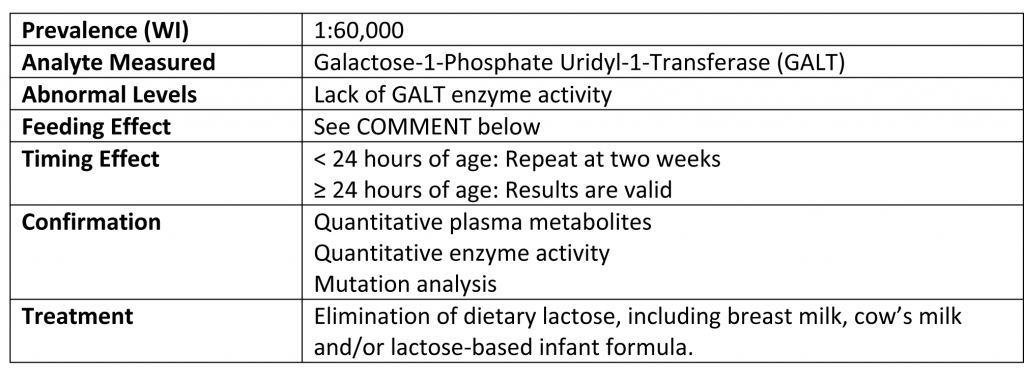

Galacto

COMMENT: Transfusion with red blood cells may cause GALT enzyme activity to appear falsely normal. Total galactose will be performed on specimens from newborns that have been transfused. If the newborn is receiving lactose-free formula at the time of collection, there is risk of a falsely normal galactose result. Galactosemia screening for newborns, both transfused and receiving a lactose-free diet, are considered inconclusive. Repeat the newborn screen when the lactose-free formula has been discontinued.

Screening for galactosemia using the GALT enzyme test will NOT detect galactosekinase or uridine diphosphate galactose 4 epimerase.

Back to top

Hemoglobinopathies

Hemoglobin Diseases

A group of autosomal recessive disorders characterized by synthesis of abnormal hemoglobin molecules (e.g., S, E, C, D) or decreased synthesis of a beta globin chain. Those hemoglobinopathies characterized by synthesis of an abnormal molecule are detectable at birth. Affected individuals with sickle cell disease may have early overwhelming sepsis and require prompt evaluation at a comprehensive care facility.

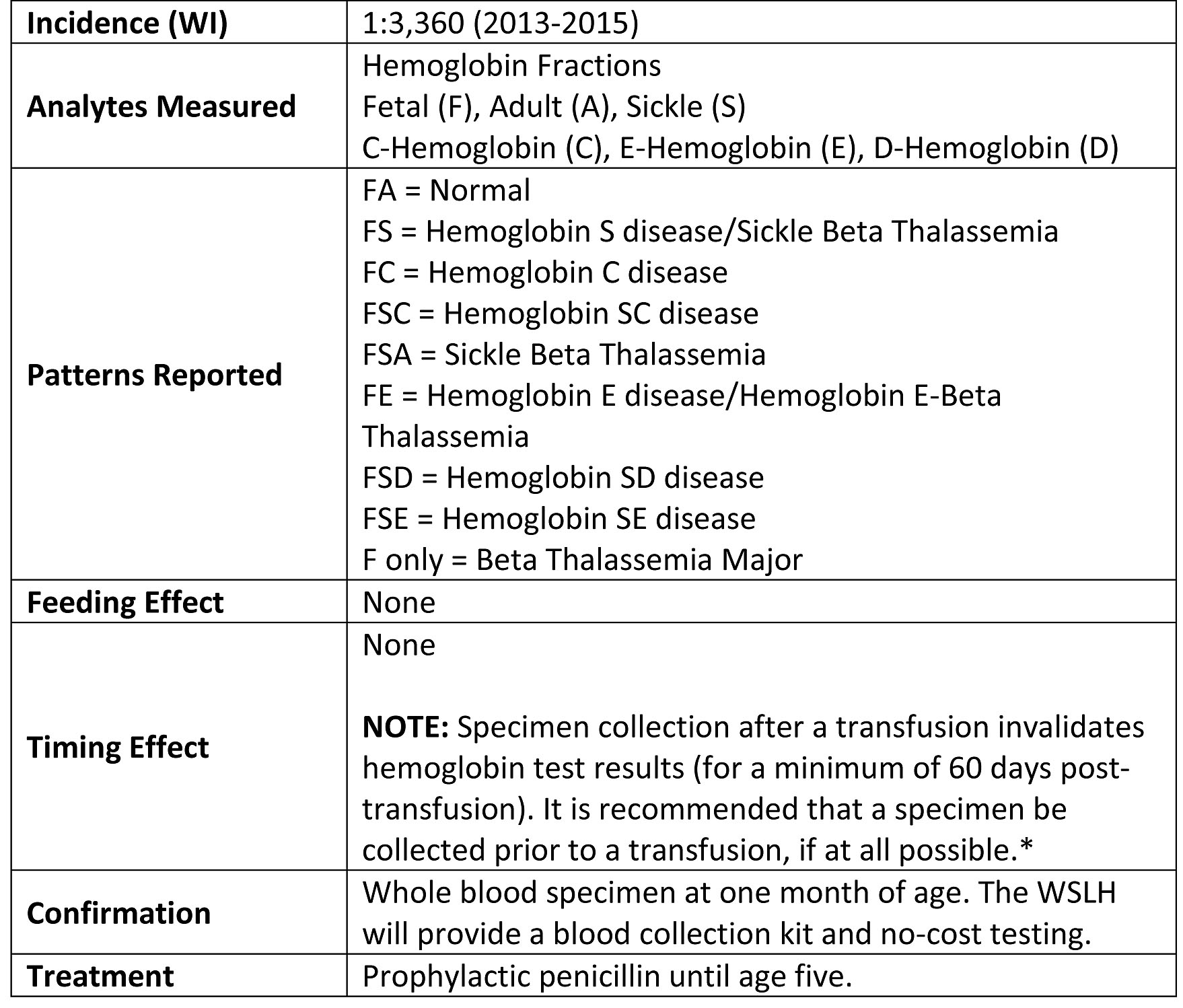

Incidence



Hemoglobin Traits

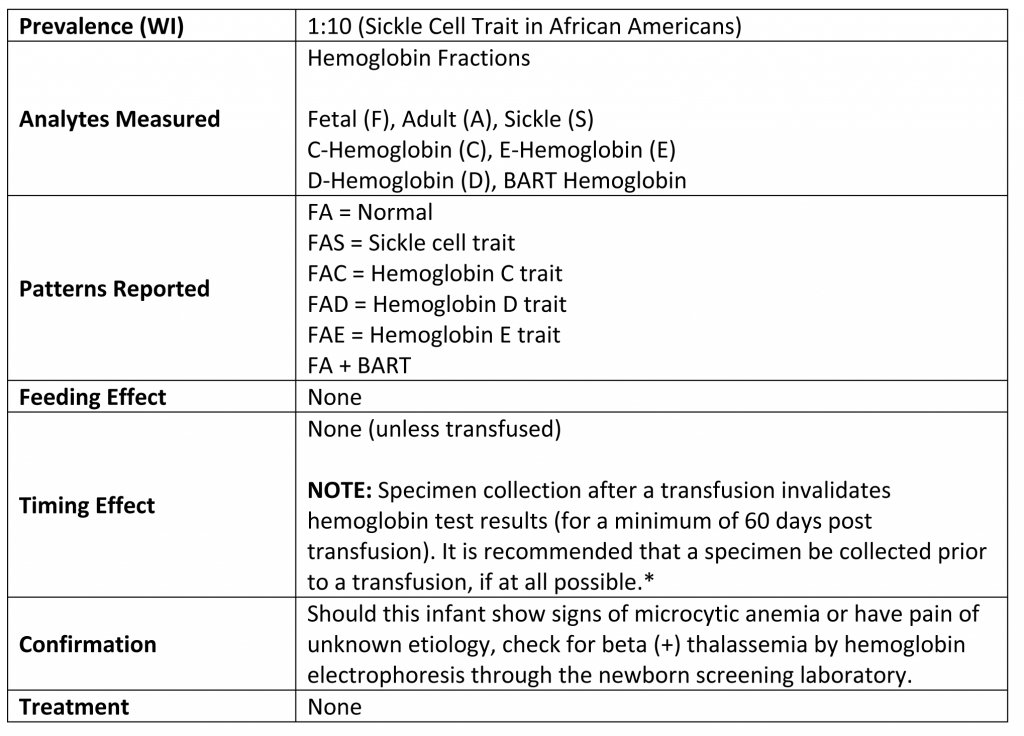

HemoGlob-2

*If a baby has been transfused or a transfusion is imminent, see When to Collect a Specimen

COMMENT: Persons with hemoglobin traits are by definition carriers of an abnormal hemoglobin gene. While this fact has little clinical significance to the individual, genetic counseling is important (especially sickle cell trait (FAS)) because both parents may also be carriers creating a significant risk for a future baby to have a hemoglobin disease (i.e., sickle cell disease).

Any concern for the rare symptomatic variant (non-sickle) can be monitored through clinical observations (anemia, jaundice, cyanosis) combined with a hemoglobin electrophoresis, CBC, and reticulocyte count. By one year of age, some children may show a mild microcytic anemia. The presence of Barts hemoglobin is an exception as it may be clinically significant, especially in Southeast Asians. Specific hematologic consultation is recommended for babies who show Barts hemoglobin at newborn screening. Recommended follow-up at one year of age is CBC, reticulocyte count, and hemoglobin quantitation.

http://prod-www.slh.wisc.edu/newborn/guide/bartfinal_files/slid

Back to top

Hyperphenylalaninemia (see PKU)

Homocystinuria & Hypermethioninemia

Autosomal recessive amino acid disorder caused primarily by a deficiency in cystathionine beta synthase enzyme activity causing the build-up of the amino acid methionine in the blood. Early detection and treatment can prevent associated mental retardation, seizures, motor development delays, weakening of bones, and venous and arterial blood clots.

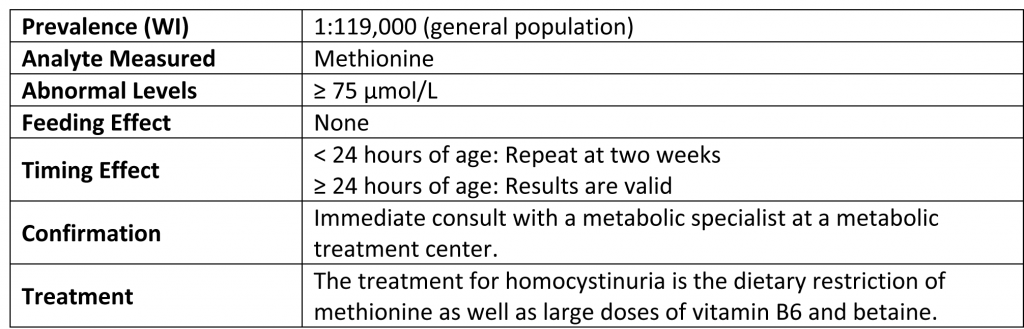

Hemocyst
Back to top

Phenylketonuria (PKU)

(Hyperphenylalaninemia and Biopterin [BN4] Cofactor defects of regeneration and biosynthesis)

Autosomal recessive hyperphenylalanemia caused primarily by a deficiency of phenylalanine hydroxylase activity, or impaired synthesis, or recycling of the biopterin (BN4) cofactor. Early detection and treatment is essential to prevent associated mental retardation.

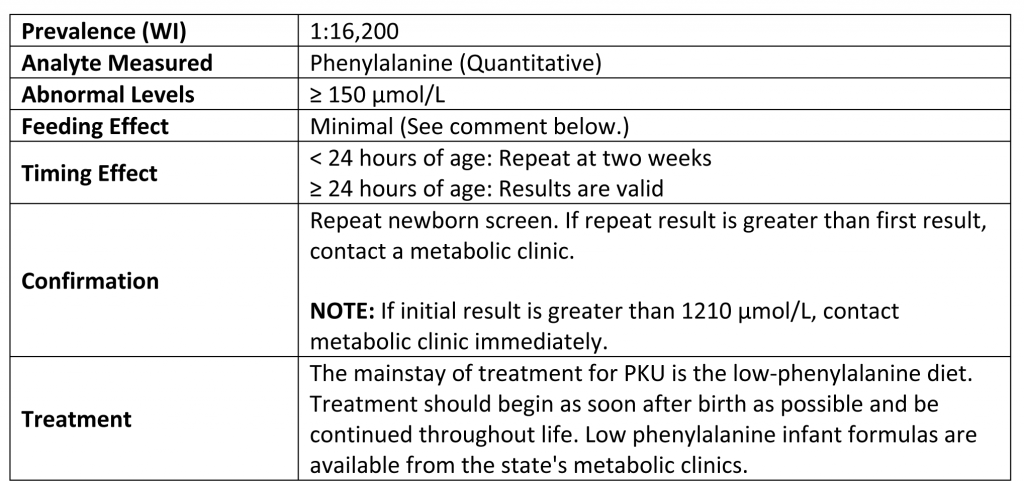

PKU

COMMENT: The use of quantitative phenylalanine measurements increases the ability to detect PKU earlier in the baby’s life than previously used qualitative assays. This, and the fact that phenylalanine levels are often (greater than 90% of the time) above normal at birth and continue to rise in the first hours of life, decrease the need for a protein feeding for the detection of PKU. The program has detected PKU in babies when specimens were collected before 8 hours of age and prior to a protein feeding.

Back to top

Maple Syrup Urine Disease (MSUD)

Autosomal recessive amino acid disorder caused by deficiencies in the branched chain keto-acid dehydrogenase enzymes causing the build-up of leucine, isoleucine, and valine in the blood. Early detection and treatment is essential to prevent associated mental retardation and/or neurological complications.

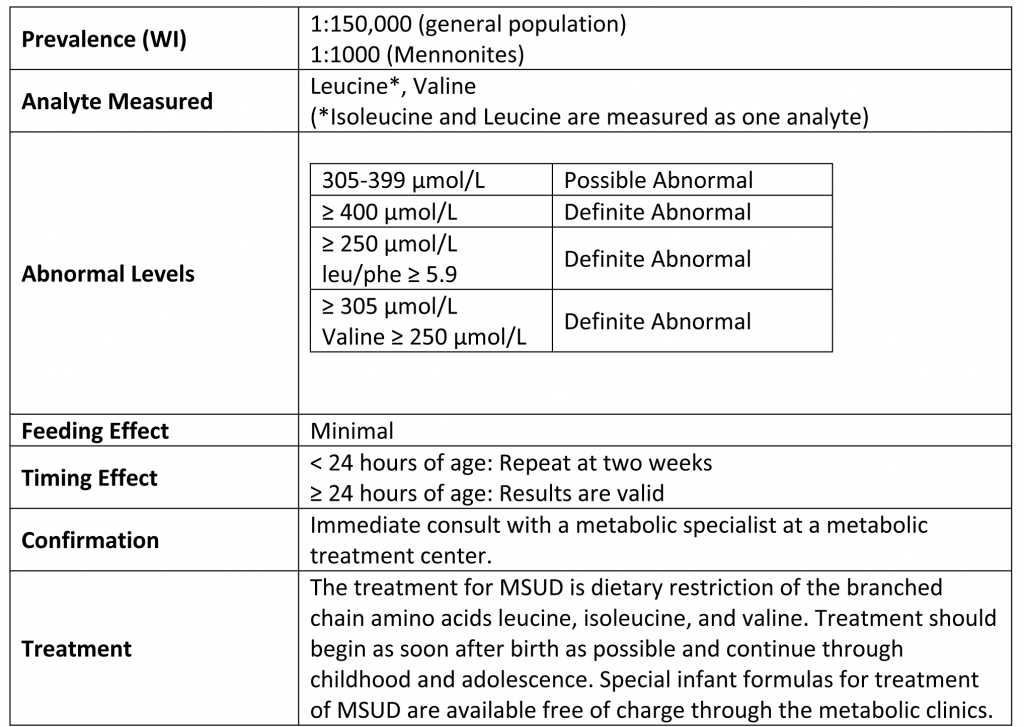

MSUD
Back to top

Organic Acidemia Disorders

Organic Acidemias (OA) are a class of inherited metabolic disorders that lead to accumulation of organic acids in biological fluids (blood and urine). This, in turn, produces disturbances in the acid-base balance and causes alterations in pathways of intermediary metabolism. Clinical symptoms of OA disorders may include vomiting, metabolic acidosis, ketosis, dehydration or coma, hyperammonemia, lactic acidosis, hypoglycemia, failure to thrive, hypotonia, global developmental delay, sepsis and hematological disorders.

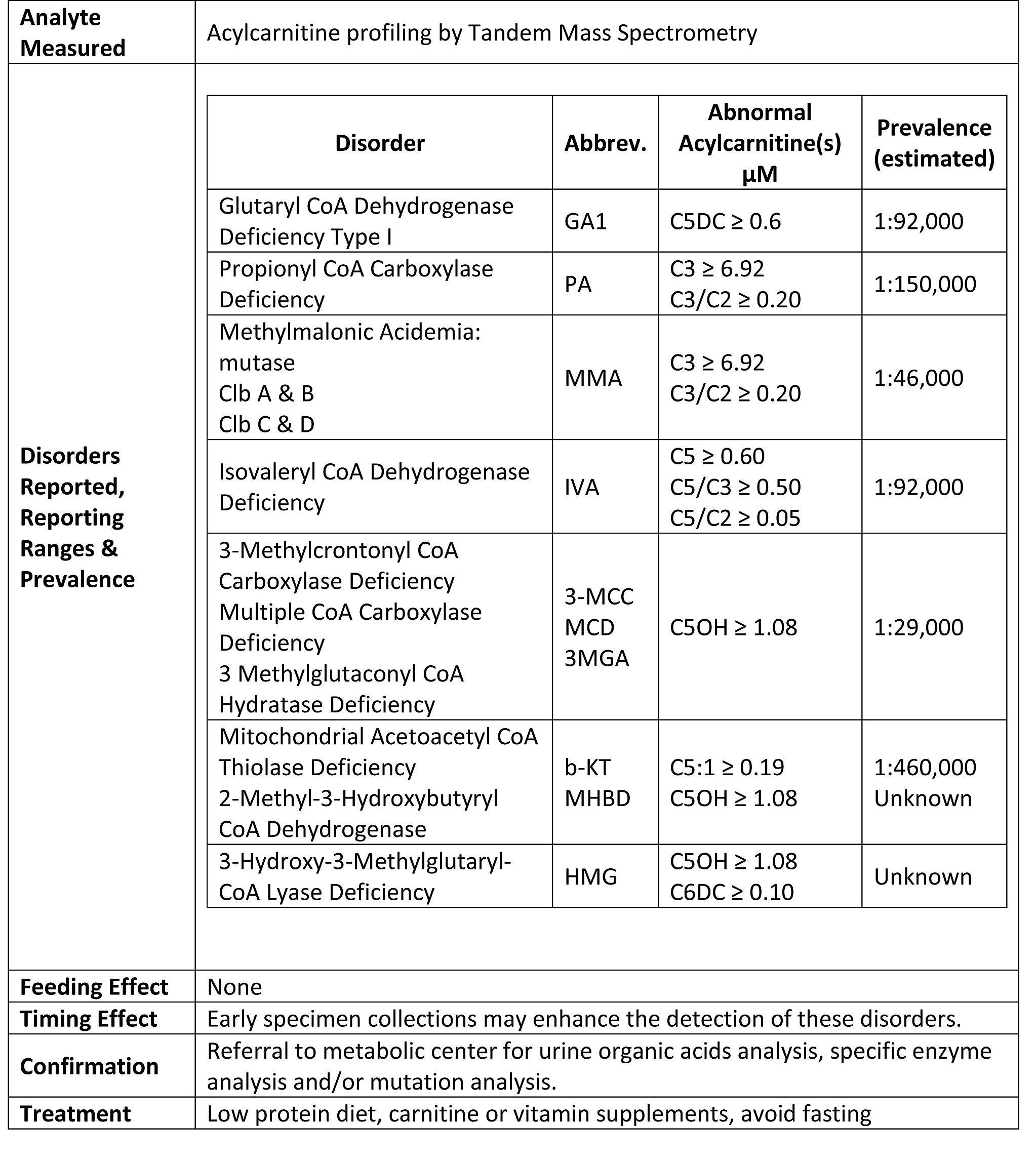

OrganicAcidemia
Back to top

Pompe Disease

Autosomal recessive disorder caused by a lack of function of the enzyme acid alpha-1, 4-glugosidase (GAA) or acid maltase. Pompe disease is also a lysosomal storage disorder. Without the proper function of GAA, glycogen that enters into the lysosome is not broken down, but continues to build up and disrupt the function of the lysosome. Since there is no (or little) enzyme to break down the glycogen, muscles accumulate large deposits of glycogen. The large deposits of glycogen cause lysosomes to grow larger until they will eventually break down and disrupt the function of the cell and the organs that the cell makes up – including the heart and skeletal muscles.

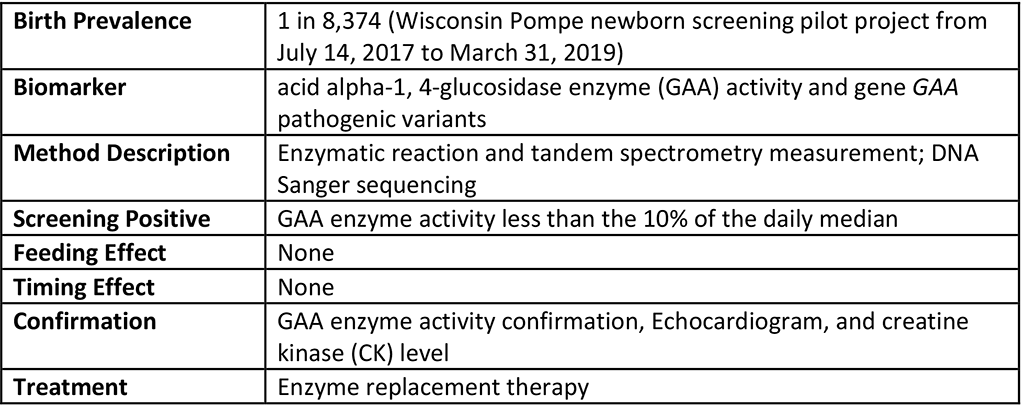

Pompe test panel

Back to top



Severe Combined Immune Deficiency (SCID)

Severe Combined Immune Deficiency (SCID) is a group of inherited diseases that result in a lack of T-cells and severely reduced B-cell function. The mode of inheritance may be X-linked or autosomal recessive. Babies with SCID are extremely susceptible to infection and die early in life unless treated with allogeneic bone marrow transplantation.

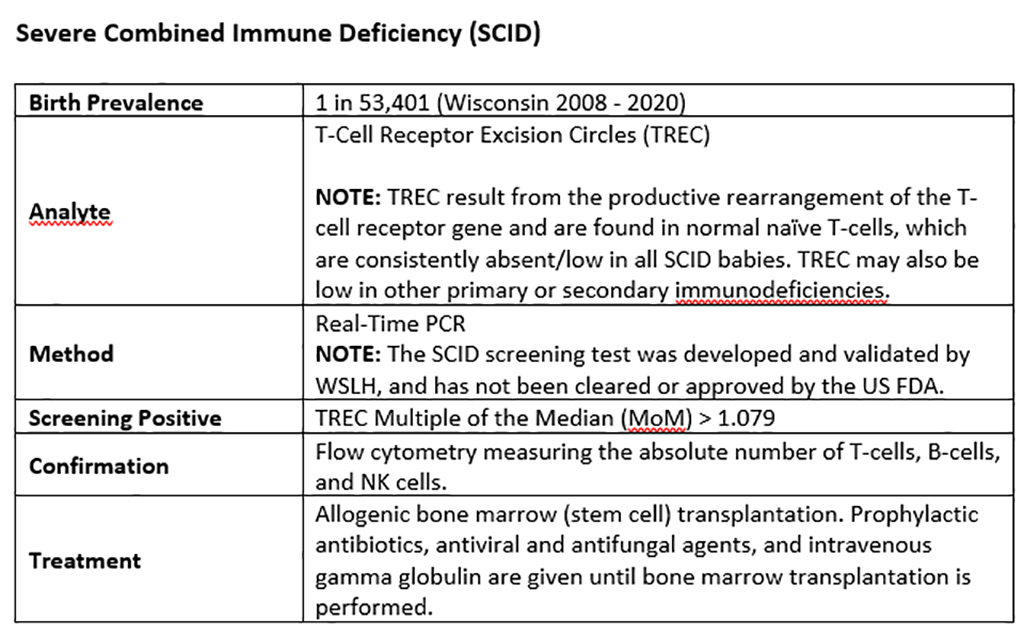

SCID

COMMENT: Since the diagnosis of SCID can be difficult, it is recommended that one of the state’s pediatric immunology specialists be consulted for proper follow-up when “SCID screening positive” is reported from the screening laboratory. A list of specialists is provided on the written report issued by the newborn screening laboratory.

SCID Test Fact Sheet for Physicians

Back to top

Tyrosinemia (Types I, II, III)

Autosomal recessive amino acid disorder caused by a deficiency in fumarylacetoacetate hydrolase enzyme activity causing the build-up of the amino acid tyrosine in the blood. Early detection and treatment is successful in preventing poor growth, liver damage, swelling of the legs, and inappropriate bleeding.

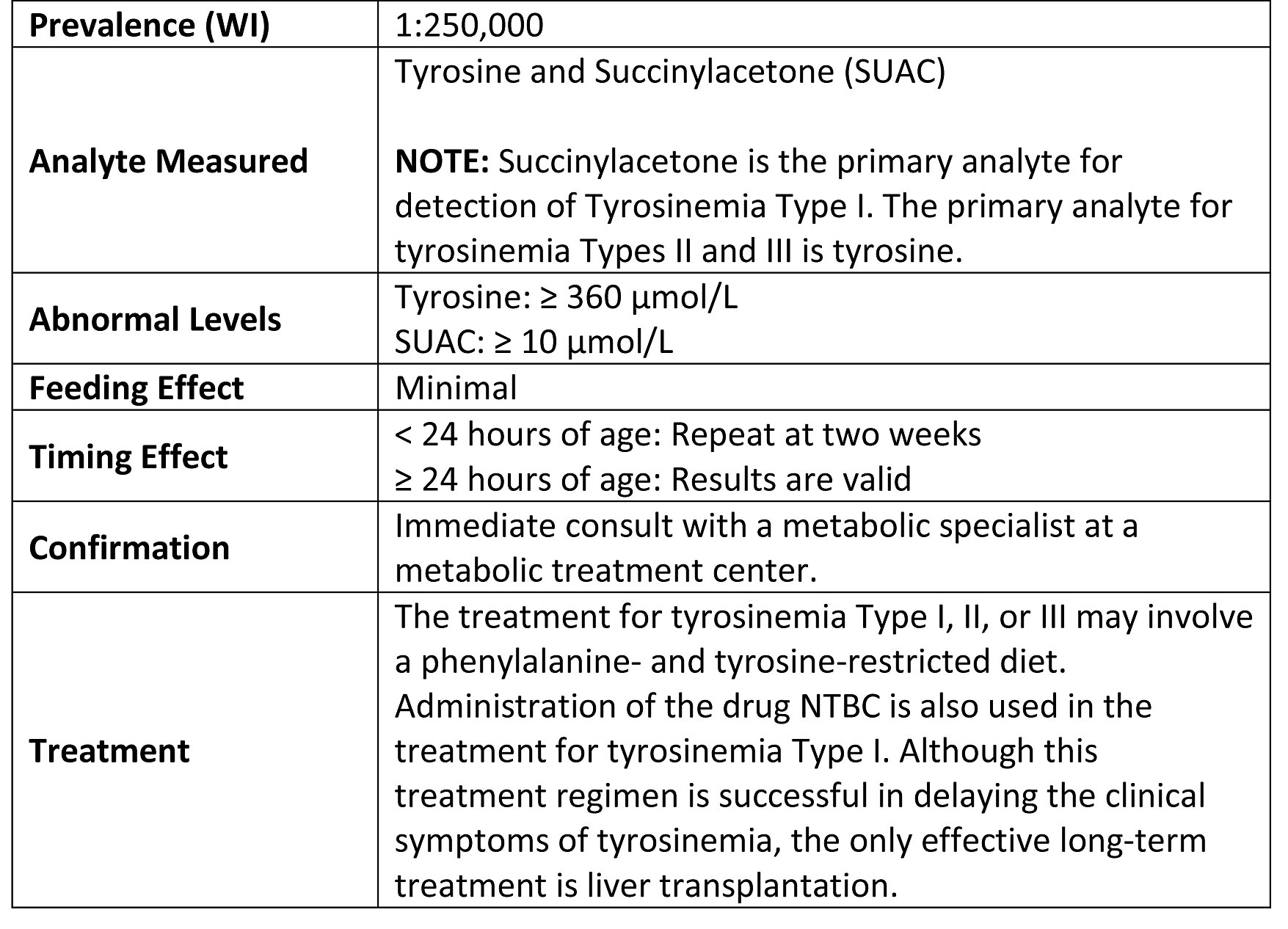

TYrosinemiaWebUpdate-083115

Back to top

Spinal Muscular Atrophy

Autosomal recessive neuromuscular disease caused by biallelic pathogenic variants in the survival motor neuron 1 (SMN1) gene, resulting in loss of lower motor neurons in the spinal cord and brain stem nuclei, and leading to progressive muscle weakness and atrophy. In 95% of cases, the variants are deletions within SMN1.

SMA panel

Back to top
